Proper insulation is essential for maintaining healthy bee colonies throughout winter months and extreme weather conditions.
Effective hive insulation helps bees conserve energy, reduces honey consumption for heating, and creates stable environmental conditions that support colony survival and productivity.
Primary Insulation Methods

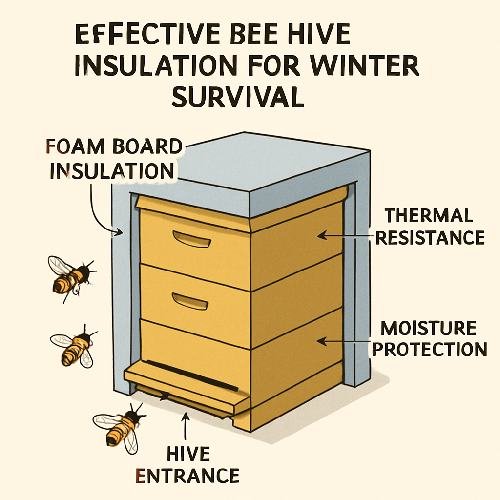

Rigid Foam Board Insulation
Rigid foam board insulation stands out as one of the most effective approaches for beehive thermal protection.
Polystyrene foam boards provide excellent R-values, with some offering R-6 insulation comparable to natural tree cavities. These boards are lightweight, easy to cut to size, and can be secured around hive bodies using straps or bungee cords.[1][2][3]
Extruded polystyrene (XPS) or expanded polystyrene (EPS) boards work particularly well, offering superior thermal resistance while resisting moisture and maintaining their insulating properties over time.
The insulation should cover the hive’s top, sides, and back while leaving the entrance unobstructed.[4][5][1]
Commercial Hive Wraps
Bee Cozy Winter Wraps represent a popular commercial solution, providing R-8 insulation through fiberglass-filled polypropylene construction.
These wraps slip easily over standard hive configurations and include breathable design features that maintain crucial ventilation while protecting against wind and cold. The black exterior helps absorb solar heat even on cold winter days.[6][7][8]
Heated Insulation Systems
Electrically heated bee blankets offer the most advanced insulation approach, providing both thermal protection and active heating.
These blankets feature built-in thermostats to prevent overheating while maintaining consistent hive temperatures, reducing bee energy consumption and potentially increasing honey yields.[1]
Natural Insulation Materials
Traditional Options
Several natural materials provide effective and economical insulation solutions:[4][1]
- Hay bales: Excellent insulators that can be stacked around and on top of hives for comprehensive protection
- Straw: Provides good thermal conductivity control while allowing airflow to prevent moisture buildup
- Wood shavings: Act as insulators while adding protection against temperature extremes
- Old blankets and rugs: When covered with plastic tarps to prevent moisture saturation, these provide adequate insulation for moderate climates
Specialized Natural Products
Homasote (recycled sawdust and newsprint mixture) offers an R-value of approximately 1.20 per half-inch thickness and serves dual purposes as both insulation and moisture collection.
However, its effectiveness decreases when saturated with moisture, requiring careful consideration of local humidity conditions.[9]
Reflective Insulation Systems
Foil-faced polyisocyanurate foam combines traditional insulation with infrared heat reflection capabilities. This dual-function material requires an air gap between the heat source and foil surface to maximize reflective benefits.
Reflective foil insulation works particularly well in summer conditions, reflecting radiant heat away from hives to prevent overheating.[9][4]
Critical Insulation Considerations
Moisture Management
Proper insulation must address both thermal protection and humidity control.
Moisture boards made from absorbent materials like Homasote help capture excess humidity before it condenses and drips onto bee clusters. These boards should be placed below inner covers with grooves cut lengthwise to allow expansion and contraction.[10][11][12][13]
Ventilation Balance
Effective insulation requires balancing thermal protection with adequate airflow.
Upper ventilation through notched inner covers or quilt boxes helps manage moisture while preventing dangerous condensation buildup. However, excessive ventilation can lead to heat loss and increased honey consumption.[12][13][14]
Entrance Management
Entrance reducers help minimize cold air infiltration while maintaining necessary bee access. However, reducers must be sized appropriately to prevent ice buildup and maintain adequate airflow.
Most experts recommend reducing entrances to approximately 3/8 inch by 1 inch during winter months.[15][16][1]
Advanced Insulation Strategies
Multi-Layer Systems
The most effective approach often combines multiple insulation types. A comprehensive system might include:[5][9]
- Rigid foam boards on hive sides (R-6 to R-10)
- Enhanced top insulation (R-20 to R-30)
- Reflective barriers with air gaps
- Moisture management components
Climate-Specific Adaptations
Insulation strategies should match local climate conditions.
Desert beekeepers benefit from insulation that protects against heat as well as cold, while northern climates require maximum thermal protection with careful moisture management.
Even in warmer regions, insulation helps bees maintain optimal temperatures while reducing energy expenditure.[17][18][4]
Installation Best Practices
Timing and Preparation
Install insulation before temperatures consistently drop below 45°F.
Remove excess honey supers to reduce hive volume and improve insulation effectiveness.
Ensure all insulation materials have adequate curing time if using expanding foam adhesives, allowing at least three weeks for fume dissipation.[3][6][1]
Securing Methods
Use ratchet straps, bungee cords, or non-toxic adhesives to secure insulation materials.
Avoid blocking entrances or ventilation openings, and ensure materials can withstand wind and weather without shifting.[19][5][1][4]
Summary of Beehive Insulation Methods
| Insulation Method | Typical R-Value | Key Advantages | Key Limitations |
| Rigid Foam Boards (XPS/EPS) | R-6 per 1″–1½″ thickness | – High thermal resistance – Durable and moisture-resistant – Easily cut to fit hive dimensions | – Requires secure fastening – Can be more expensive than natural materials |
| Commercial Hive Wraps | R-8 | – Quick installation – Breathable yet wind-proof – Absorbs solar heat on sunny days | – Limited thickness flexibility – May degrade under UV exposure over multiple seasons |
| Electrically Heated Blankets | Variable (active heat) | – Maintains consistent temperature – Reduces honey consumption – Thermostat-controlled | – Requires power source – Higher upfront cost and potential electrical hazards |
| Natural Materials (hay, straw, wood shavings, old blankets) | R-2 to R-4 | – Readily available and low cost – Biodegradable – Provides moderate insulation and airflow | – Bulkier installation – Prone to moisture absorption and decay |
| Homasote Moisture Boards | R-1.2 per ½″ | – Dual function: insulation + moisture absorption – Recycled material | – Reduced effectiveness when saturated – Requires periodic replacement |
| Reflective Foil Insulation | R-3 to R-5 (with air gap) | – Reflects radiant heat (summer/winter) – Thin and lightweight | – Needs proper air gap for effectiveness – Minimal R-value without air space |
Table: Overview of common beehive insulation options, their insulating performance, main benefits, and drawbacks.
Summary
Proper hive insulation significantly improves colony survival rates while reducing stress on bees during challenging weather conditions.
The investment in quality insulation materials and proper installation typically pays dividends through stronger spring colonies and improved honey production.
⁂
